Gearbox The 2-range hydrostatic transmission provides unlimited variable speed from 0-25.8 km / h. The range selector is located on the left side of the seat. 2 directional pedals are fitted for use with the right foot, the left pedal moves the tractor forward and the right pedal moves the tractor backwards.
Clutch single-plate dry
Differential lock Mechanical
Traction 4×4
4×4 traction coupling electrohydraulic
Rear power take-off Independent with 540/960 rpm with 6 splines
PTO power 18 HP
Forward travel speed 0 – 25,8 km/h
BRAKING SYSTEM
Service brake Multi-disc in oil bath (rear axle)
Parking brake With manual operation
HYDRAULIC SYSTEM
Direction Hydrostatic, flow rate 13 l/m
Hydraulic pump flow rate 18,2 l/min
Hydraulic system 1 hydraulically operated hydraulic valve and 1 pair of hydraulic couplings behind the tractor
REAR FRAME
Hydraulic rear lift Three-point linkage, rapid couplings cat. I
Max. lifting capacity 650 kg
Mechanism Mechanical position control
Drawbar Fixed
Operator chair With mechanical suspension and seat belt
Side mirrors Yes
Electrical installation 12 V general contact, 7-pin trailer socket on the rear of the tractor
Lighting system For traffic on public roads
TIRES
Front 7-16, with fixed rims
Rear 11,2-20, with adjustable rims
MISCELLANEOUS
Mudguards rear
Front weighing 3 x 20 kg with integrated towing hook
Length 3 122 mm
Width 1 369 mm
Height 2321 mm*
Wheelbase 1 670 mm
Net weight 956 kg, without counterweights
Ground clearance 417 mm*
Overview

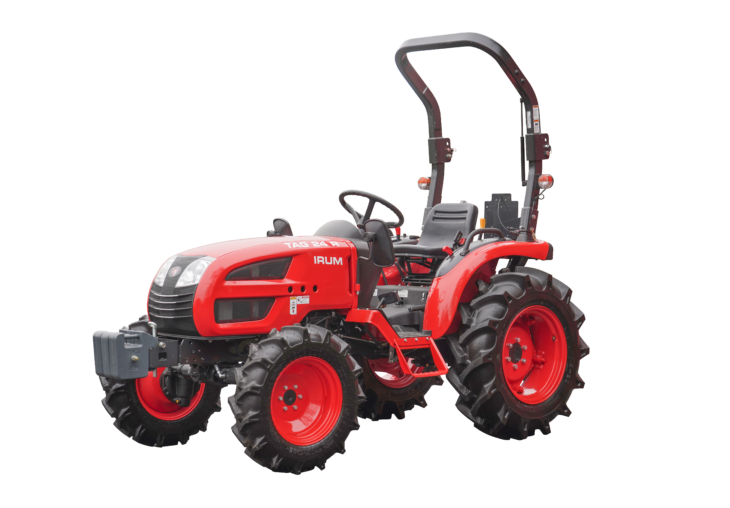

A tractor suitable for family farms with small areas of land and not only. Being small in size and without a cab, it successfully manages the works in vegetable growing, solariums, viticulture, fruit growing, but it can also show its value in the field, in the works of mowing, raking and not only.
It successfully combines operator comfort and high productivity, with an affordable cost.
Note: The total height and ground clearance may vary depending on the size of the tires that the tractor is fitted with.
