PONSSE H7 HD EUCA

Funding

Technical details

TECHNICAL CHARACTERISTICS

Minimum weight 1200kg
Length 1500 mm
Width 1540 mm
Height without the rotating system 1680 mm
Feed system 3 feed rollers
Feed force 25 KN
Maximum opening 630 mm
Feed speed 6 m / s
Chain 0.404″
Number of knives 4+1+1
Maximum opening of front knives 620 mm
Maximum opening of rear knives 730 mm
Operating pressure 28 MPA
Tracked carrier weight 16 – 22 tone
Measuring device PONSSE Opti4G

Overview

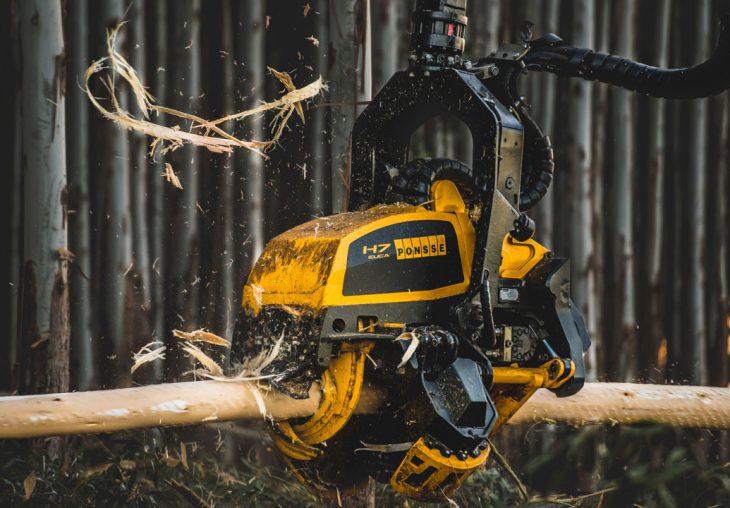

The PONSSE H7 EUCA is a new generation harvesting implement, excellent for unloading the trees during processing. The EUCA H7 is based on the long experience of the PONSSE family of harvesting implements, the reliability and excellent characteristics of the H7 and the experience of unloading requirements.
